Juego (Kit) Mantenimiento para Rompedoras Chicago Pneumatic CP 1290
Juego (Kit) Mantenimiento para Rompedoras Chicago Pneumatic CP 1290
Precio habitual
$ 29,900.00 MXN
Precio habitual
Precio de oferta
$ 29,900.00 MXN
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
Descripcion del producto

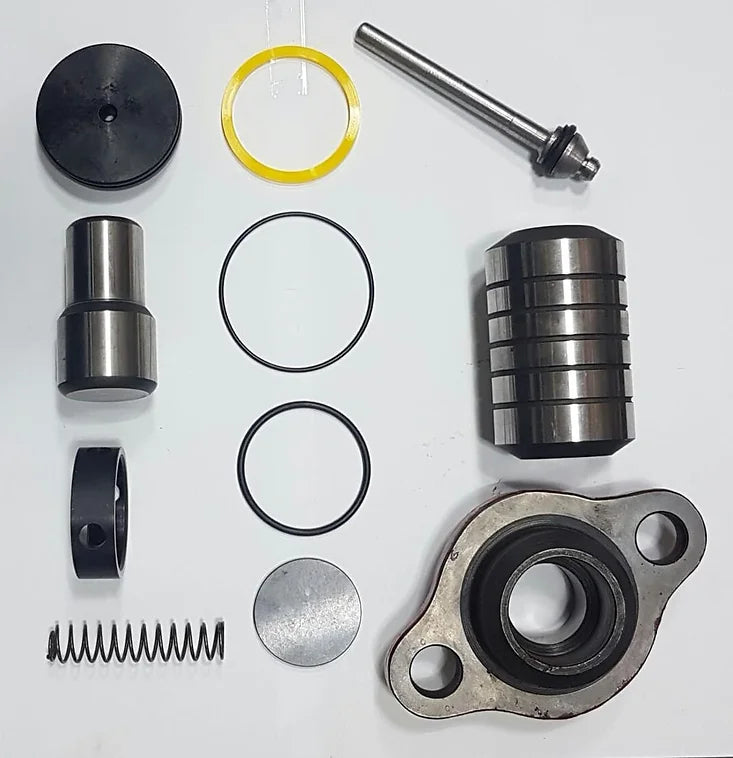

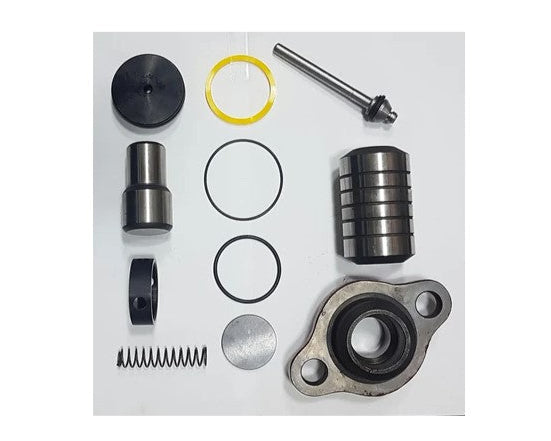

El siguiente kit incluye las refacciones de mantenimiento basico para martillos rompedores de la marca chicago pneumatic.
Numeros del Kit-
*005370
*R122977
*R092894
*33030053 74
*33030050 55
Solicita todos los refaccionamientos para Rompedoras
Parts List
Ficha tecnica de refacciones
| C036901 | Oil Regulating Plug | ||
| C090659 | Plug | ||
| F037789 | Front Head Bolt Nut | ||
| F037790 | Front Head Bolt | ||
| F814725 | Throttle Lever | ||
| H4184044 | Label - Sound Power Level | ||
| P008999 | Nut | ||
| P081333 | Screw - Self Tapping | ||
| P083094 | O-Ring | ||
| R000127 | Piston | ||
| R005717 | Throttle Valve Spring | ||
| R040635 | Front Head Bushing - 1-1/4" | ||
| R047965 | Cylinder Seal | ||
| R050894 | Latch Retainer Bushing | ||
| R075031 | Oil Plug | ||
| R076562 | Retainer Bolt Bushing | ||
| R076853 | Latch Bolt | ||
| R085259 | Spring Washer | ||
| R090122 | Front Head Bushing - 1-1/8" | ||
| R092894 | Throttle Valve ONLY | ||
| R092904 | Valve Case | ||
| R092907 | Anvil Block Bushing | ||
| R092909 | Latch Retainer - Complete | ||
| R092910 | Latch Plunger | ||
| R092911 | Latch Plunger Spring | ||
| R092917 | Front Head - 1 1/8" Hex | ||
| R092918 | Front Head - 1 1/4" Hex | ||
| R096059 | Front Head Lock Washer | ||
| R096123 | Anvil Block | ||
| R098368 | Throttle Valve Seal | ||
| R098369 | Valve Seal Retainer Ring | ||
| R122975 | Valve | ||
| R122976 | Valve Guide | ||
| R122977 | Valve Case Ass'y | ||
| R133433 | Roll Pin | ||
| 108132200 | Spring Pin | ||
| 108133100 | Spring Pin | ||
| 147195960 | Screw | ||
| 147300032 | Screw - Flange | ||
| 211171105 | Screw | ||
| 261109953 | Nut | ||
| 663212600 | O-Ring | ||
| 663214600 | O-Ring | ||
| 663214900 | O-Ring | ||
| 3303005012 | Air Inlet Swivel | ||
| 3303005055 | Latch Kit | ||
| 3303005276 | Grip - Rubber | ||
| 3303005281 | Handle | ||
| 3303005285 | Cylinder | ||
| 3303005297 | Seperation Wall | ||
| 3303005298 | Seperation Wall | ||
| 3303005305 | Trigger | ||
| 3303005307 | Grip - Rubber | ||
| 3303005310 | Label - CP Product | ||
| 3303005313 | Buffer | ||
| 3303005320 | Muffler |
| |
| 3303005362 | Handle Spring | ||
| 3303005364 | Cover | ||
| 3303005370 | Back Head - Complete for Spike Driver | ||
| 3303005374 | Side Bolt Kit | ||
| 3303005377 | Muffler - Complete | ||
| 3303005378 | Back Head - Complete | ||
| 3303005379 | Throttle Valve - Complete | ||
| 3310104400 | Air Inlet Swivel Nut | ||
| 3310105900 | Lock Washer | ||
| 3310160200 | Label - Safety | ||
| 8900003037 | CP 1290 PAV BREAKER 1-1/4 X 6 | ||
| 8900003038 | CP 1290 PAV BREAKER 1-1/8 X 6 | ||
| 8900003039 | CP 1290S Paving Breaker 1-1/4 X 6 | ||
| 8900003040 | CP 1290S PAV BREAKER 1-1/8 X 6 | ||
| 8900003041 | CP 1290SVR PAV BREAKER 1-1/4 X 6 | ||
| 8900003042 | CP 1290SVR PAV BREAKER 1-1/8 X 6 | ||
| 9232020750 |
